GPU Hardware Encoding: The Complete Guide to Smooth Screen Recording

If you've ever tried to record your screen and experienced laggy gameplay or stuttering video, you've encountered the classic problem: your CPU is overwhelmed. It's trying to run your game AND encode video at the same time, and something has to give.

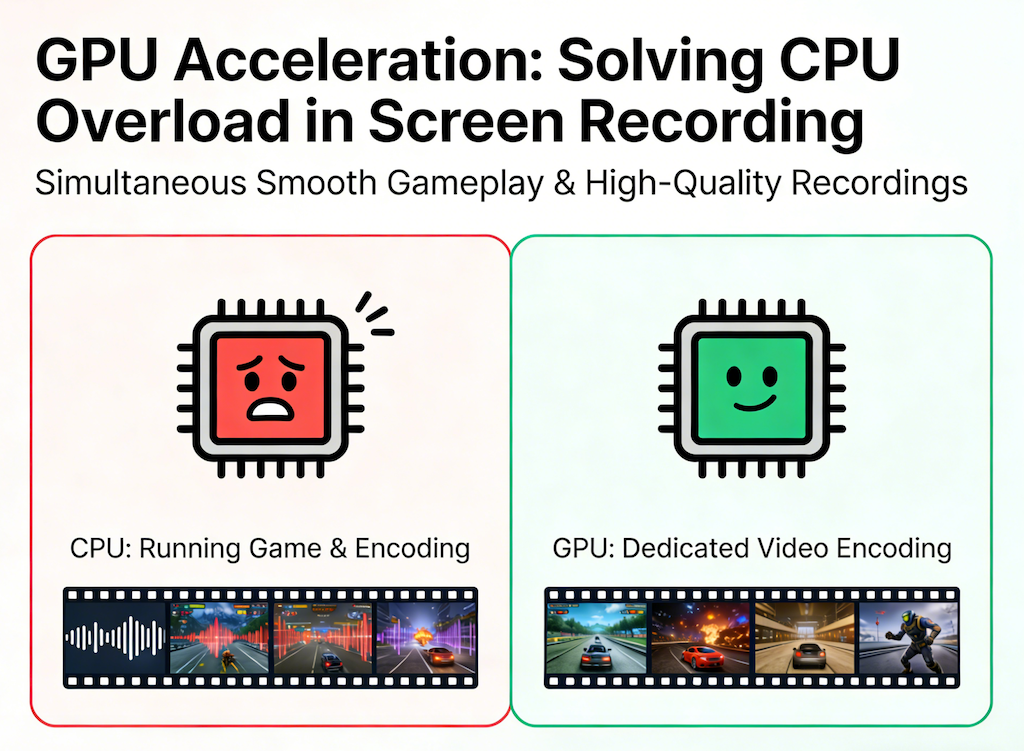

GPU acceleration solves this problem by moving video encoding to your graphics card, which has dedicated hardware designed specifically for this task. The result? Smooth gameplay and high-quality recordings—simultaneously.

What is GPU Encoding (Hardware Encoding)?

GPU encoding, also called hardware encoding, uses your graphics card's dedicated video encoding circuits to compress video in real-time. This is fundamentally different from software (CPU) encoding.

How Video Encoding Works

When you record your screen, each frame must be compressed and written to a file. A single second of 1080p 60fps video contains:

• 60 individual frames
• Each frame: 2,073,600 pixels (1920×1080)
• Total: ~124 million pixels per second
• Uncompressed: ~356 MB per second

Without compression, a 10-minute video would be 200+ GB. Video encoding compresses this by 100-200x while maintaining quality—but it requires serious processing power.

Dedicated Hardware vs General Purpose

CPU (Software Encoding):

• General-purpose processor
• Handles all system tasks
• Flexible but not specialized for video
• Uses software algorithms (x264, x265)
• High power consumption

GPU Hardware Encoder:

• Dedicated circuits on the GPU die
• Only does video encoding
• Fixed-function hardware optimized for video
• Works independently of GPU's 3D rendering
• Minimal power overhead

Key Insight: Your GPU's video encoder is a separate piece of hardware on the graphics card. It doesn't compete with 3D rendering for resources. This means you can game at full performance while the encoder handles recording in parallel.

CPU vs GPU Encoding: Performance Comparison

Let's compare what happens when you record gameplay with CPU vs GPU encoding.

Real-World Example

Imagine you're playing a CPU-intensive game like Cyberpunk 2077 at 1080p 60fps:

The Bottom Line: GPU encoding allows you to record (or stream) with minimal impact on gameplay. For gamers, this isn't just convenient—it's essential for maintaining competitive performance while creating content.

NVIDIA NVENC Explained

NVENC (NVIDIA Encoder) is NVIDIA's hardware video encoder, built into GeForce, Quadro, and Tesla GPUs since 2012. It's the most widely used and well-supported GPU encoder.

NVENC Generations

NVIDIA has improved NVENC significantly over the years. The generation matters for quality:

NVENC Quality: How Good Is It?

Modern NVENC (Turing and newer) has closed the gap with CPU encoding significantly:

• RTX 20/30/40 series NVENC: Quality is comparable to x264 Medium preset at the same bitrate
• At higher bitrates (10+ Mbps): Nearly indistinguishable from CPU encoding
• For recording: Excellent quality, especially with HEVC
• For streaming: Twitch/YouTube viewers won't notice the difference

Recommendation: If you have an RTX 20 series or newer GPU, use NVENC for both recording and streaming. The quality is excellent and the performance benefit is enormous.

AMD VCE/VCN Explained

AMD's hardware encoder has evolved from VCE (Video Coding Engine) to VCN (Video Core Next). It's available on Radeon graphics cards and AMD APUs.

AMD Encoder Generations

AMD vs NVIDIA Encoding

Historically, AMD's encoder lagged behind NVIDIA's NVENC in quality. However, recent generations (VCN 2.0+) have significantly closed the gap:

• RX 6000 series: Quality is now competitive with NVIDIA's older NVENC
• RX 7000 series: AV1 support brings it to parity with RTX 40 series
• Software support: OBS, LosslessRec, and other apps support AMD AMF

For AMD Users: If you have an RX 6000 or newer card, use AMF HEVC encoding for best results. The quality is very good and the performance impact is minimal.

Intel Quick Sync Explained

Intel Quick Sync Video is built into Intel's integrated graphics (iGPU) on most Intel CPUs. It's also available on Intel Arc dedicated GPUs.

Key Characteristics

• Location: Integrated into Intel CPU's graphics portion
• Availability: Most Intel CPUs since Sandy Bridge (2011)
• Advantage: No additional hardware needed—works even with dedicated GPU installed
• Efficiency: Very low power consumption compared to GPU encoding
• Best use: Perfect for laptops and systems with limited GPU resources

Intel Quick Sync Generations

When to Use Quick Sync

Quick Sync is ideal for:

• Laptops: Saves battery by using efficient iGPU instead of power-hungry dGPU
• Streaming: Use Quick Sync for encoding stream, save GPU for gaming
• Dual-PC setups: Encoding on a separate Intel-based machine
• Budget builds: No need for dedicated GPU for basic recording

Pro Tip: If you have an Intel CPU with a discrete NVIDIA/AMD GPU, you can use Quick Sync for encoding while gaming on your dedicated GPU. This gives you the best of both worlds—no GPU resources taken from gaming.

GPU Encoder Comparison

Let's compare all three hardware encoders side by side:

How to Enable GPU Encoding

Enabling hardware encoding is straightforward in most recording software. Here's how to do it:

In LosslessRec

1. Open Settings → Video
2. Find "Encoder" dropdown
3. Select your GPU encoder:
   • NVIDIA: NVENC H.264 or NVENC HEVC
   • AMD: AMF H.264 or AMF HEVC
   • Intel: QuickSync H.264 or QuickSync HEVC
4. Set quality preset (CQP 20-23 recommended)
5. Start recording!

In OBS Studio

1. Go to Settings → Output
2. Set Output Mode to "Advanced"
3. In Recording tab, find "Video Encoder"
4. Select your hardware encoder (NVENC, AMD AMF, or QuickSync)
5. Configure rate control (CQP preferred for recording)

Important: Make sure your GPU drivers are up to date. Hardware encoding features are often improved in driver updates, and some encoder options may not appear with outdated drivers.

Troubleshooting GPU Encoding Issues

GPU Encoder Not Showing Up

Possible causes:

• Outdated drivers: Update to latest GPU drivers
• Wrong GPU selected: In laptops, ensure dedicated GPU is active
• Encoder disabled in BIOS: Some systems allow disabling iGPU
• Software too old: Update your recording software

Recording Quality is Poor

Possible causes:

• Bitrate too low: Increase to 10,000+ kbps for 1080p
• CQP too high: Lower CQP value (18-23 range is ideal)
• Old GPU: Pre-RTX NVIDIA or older AMD cards have lower quality encoders
• Using H.264 instead of HEVC: Switch to HEVC for better quality at same bitrate

Performance Impact Despite GPU Encoding

Possible causes:

• GPU at 100% usage: Lower game settings to free up GPU resources
• Recording at too high resolution: Match your gameplay resolution
• Multiple GPU-intensive tasks: Close other GPU-heavy applications
• VRAM full: Lower texture quality or recording resolution

Frequently Asked Questions

1. Is GPU encoding better than CPU encoding?

For recording, GPU encoding is almost always better. It offloads work from your CPU to your GPU's dedicated encoder, resulting in:

• Near-zero CPU usage
• No game performance impact (in most cases)
• Ability to record at higher resolutions and frame rates
• Better system responsiveness while recording

CPU encoding (x264) is mainly used for streaming when GPU encoding isn't available or for maximum quality at very low bitrates.

2. Does GPU encoding affect FPS?

Typically less than 5% FPS impact when using GPU encoding. However, if your GPU is already running at 100% from gaming, you may see more impact. Solutions:

• Lower in-game settings slightly to free GPU resources
• Use Quick Sync (Intel iGPU) to keep dGPU free for gaming
• Record at 1080p even if playing at 1440p/4K

3. Which encoder gives the best quality?

Quality ranking for modern encoders (2024-2026):

1. AV1 (RTX 40 series, RX 7000, Intel Arc) - Best compression efficiency
2. HEVC (H.265) - Great quality, good compatibility
3. H.264 - Universal compatibility, larger files

For NVIDIA users: RTX 40 series NVENC (AV1) > RTX 30/20 series NVENC (HEVC) > GTX series NVENC.

4. Can I use GPU encoding on a laptop?

Yes! Most gaming laptops support GPU encoding. Options:

• NVIDIA laptops: Use NVENC (dedicated GPU encoder)
• AMD laptops: Use AMF/VCN
• Intel laptops: Use Quick Sync (most efficient for battery)

For battery life, Quick Sync is often best. For quality, use the dedicated GPU encoder.

5. What's the difference between NVENC and NVENC New?

NVENC is NVIDIA's hardware encoder. Different generations have different names in OBS:

• NVENC (new): Refers to the latest encoder on your GPU (Maxwell through Turing)
• NVENC (older cards): Legacy support for GTX 600/700 series

In modern OBS, just select "NVIDIA NVENC H.264/HEVC" - it automatically uses the best encoder available.

6. Should I use CQP or CBR for recording?

CQP (Constant Quality) is best for recording:

• Adjusts bitrate based on scene complexity
• Smaller files for static scenes, higher quality for action
• Recommended CQP value: 20-23 for most use cases

CBR (Constant Bitrate) is for streaming where you need predictable bandwidth.

7. How do I record with multiple GPUs?

If you have multiple GPUs (e.g., Intel iGPU + NVIDIA dGPU):

• Best option: Game on dGPU, encode with iGPU (Quick Sync)
• Alternative: Use second GPU solely for encoding
• In OBS: Select specific GPU in encoder settings

This setup gives zero gaming performance impact while recording.

---
